#Compositor

The Compositor is Fuser's built-in visual editor for combining images, video, text, shapes, vector art, 3D objects, and more into a single layered composition. Think of it as a Photoshop or Figma-like environment embedded directly in your flow — any content you compose can flow downstream to AI nodes for inference, further editing, or export.

#Opening the Compositor

To open the Compositor, click the Edit button on the node. This opens a full-screen editing environment where you can build your composition.

When you're done, click Save & Exit to return to the flow canvas. Your composition is saved as part of the node and its output is immediately available to downstream nodes.

#Editor Layout

The Compositor editor is divided into four main areas:

• Toolbar (left) — Tool selection buttons for drawing, painting, and editing.
• Canvas (center) — The main editing surface where you compose layers.
• Layers Panel (right) — Layer list with drag-to-reorder, visibility, and lock controls.
• Properties Panel (right) — Context-sensitive settings for the selected layer or canvas.

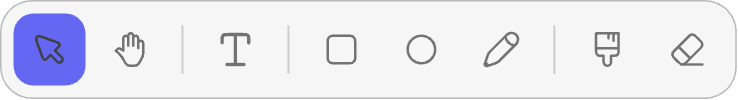

#Tools

The toolbar provides 8 editing tools, each with a keyboard shortcut:

Shortcut	Tool	Description
V	Select	Click to select layers. Drag to move. Use handles to resize and rotate.
H	Hand	Pan around the canvas. You can also hold Space to temporarily pan with any tool.
R	Rectangle	Draw rectangle layers with fill, stroke, and corner radius.
O	Ellipse	Draw ellipse and circle layers.
T	Text	Click to create a text layer. Double-click an existing text layer to edit inline.
P	Pen	Draw vector paths with bezier curves. Click to add points, drag to create curves.
B	Brush	Paint freehand on raster layers with adjustable size, opacity, and hardness.
E	Eraser	Erase content on raster layers.

#Layer Types

The Compositor supports a wide variety of layer types. Layers can be created with tools, by connecting input nodes, or by pasting/dropping content into the editor.

Layer Type	Description
Rectangle	Shape with fill color, stroke, and adjustable corner radius.
Ellipse	Circle or ellipse shape with fill and stroke.
Vector Path	Bezier curves with multiple subpaths, fill, and stroke. Supports smooth, asymmetric, and corner point types.
Text	Rich text with Google Fonts, custom fonts, variable font axes, letter spacing, and text alignment.
Image	Imported image with crop support.
Video	Imported video with crop and loop controls.
Raster	Pixel layer created by the brush tool.
Solid Color	Flat color fill layer.
3D Mesh	glTF/GLB 3D models with PBR materials (metallic, roughness) and rotation controls.
Compositor	A nested reference to another Compositor node's output, enabling compositing chains.

#Working with Layers

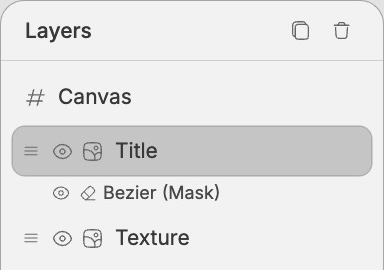

#Layers Panel

The layers panel on the right side of the editor lists all layers in your composition from top to bottom. You can:

• Reorder layers by dragging them up or down in the list.
• Toggle visibility with the eye icon.
• Lock layers to prevent accidental edits.
• Rename layers by double-clicking the layer name.

#Transforming Layers

Select a layer to see its transform handles on the canvas:

• Corner handles — Resize the layer.
• Rotation handle — Rotate the layer.
• Arrow keys — Nudge the selected layer by 1px (hold Shift for 10px, or grid-size if snapping is enabled).

You can also set precise values for position, size, rotation, scale, and anchor point in the Transform section of the properties panel.

#Properties

The properties panel updates based on your current selection. Here are the key sections:

#Canvas

Set the canvas dimensions, background color, and grid settings. Use the 9-point anchor selector to control how content repositions when you resize.

#Transform

Precise controls for position (X/Y), size (W/H), rotation, scale, anchor point, and alignment. Includes flip and rotate buttons.

#Appearance

Set layer opacity (0–100%) and blend mode. Available blend modes: Normal, Multiply, Screen, Overlay, Darken, Lighten, Color Dodge, Color Burn, Hard Light, Soft Light, Difference, and Exclusion.

#Text

Available when a text layer is selected. Configure:

• Font family — Choose from Google Fonts, system fonts, or upload custom fonts.
• Font size, color, letter spacing, and line height.
• Text alignment — Left, center, or right.
• Text box mode — Auto-width, auto-height, or fixed size.
• Variable font axes — If the selected font supports variable axes (e.g., weight, width), adjust them with sliders. Individual axes can be animated for a looping morph effect.

#Shape

Available for rectangle, ellipse, and vector layers. Set fill color, stroke color, and stroke width.

#3D Mesh

Available for 3D mesh layers. Control the viewport size, 3D rotation (X/Y/Z), and scale.

#Masks

Apply alpha or luminance masks to individual layers using another layer as the mask source. You can also set a global alpha mask that applies to the entire scene.

#Timeline

Set the scene duration (in seconds) and frames per second for compositions that include video or animation.

#Connecting Inputs

The Compositor node has dynamic input sockets that accept content from other nodes in your flow:

• Image nodes — Added as image layers.
• Video nodes — Added as video layers.
• Text nodes — Added as text layers.
• Mesh nodes — Added as 3D mesh layers.
• Other Compositor nodes — Nested as compositor layers (scene-passing).

You can also paste (Cmd/Ctrl+V) or drag and drop media directly into the editor to create new connected nodes automatically.

#Exporting

Click the export button in the toolbar to open the export dialog. Available formats:

Format	Description
PNG	Lossless image of the current frame.
JPEG	Lossy image with adjustable quality.
WebM	Video export (frame-by-frame rendering). Requires video or animated layers.

#Keyboard Shortcuts

Shortcut	Action
V / H / R / O / T / P / B / E	Switch tool (Select, Hand, Rectangle, Ellipse, Text, Pen, Brush, Eraser)
Space (hold)	Temporarily pan the canvas
Cmd/Ctrl + Z	Undo
Cmd/Ctrl + Shift + Z	Redo
Cmd/Ctrl + S	Save
Cmd/Ctrl + D	Duplicate selected layer
Cmd/Ctrl + = / Cmd/Ctrl + -	Zoom in / out
Cmd/Ctrl + 0	Fit canvas to view
Delete / Backspace	Delete selected layer
Enter	Enter text edit mode (on text layer) or finalize pen path
Escape	Exit text edit, finalize pen path, or close compositor
Arrow keys	Nudge selected layer (1px, or 10px with Shift)
